Introduction

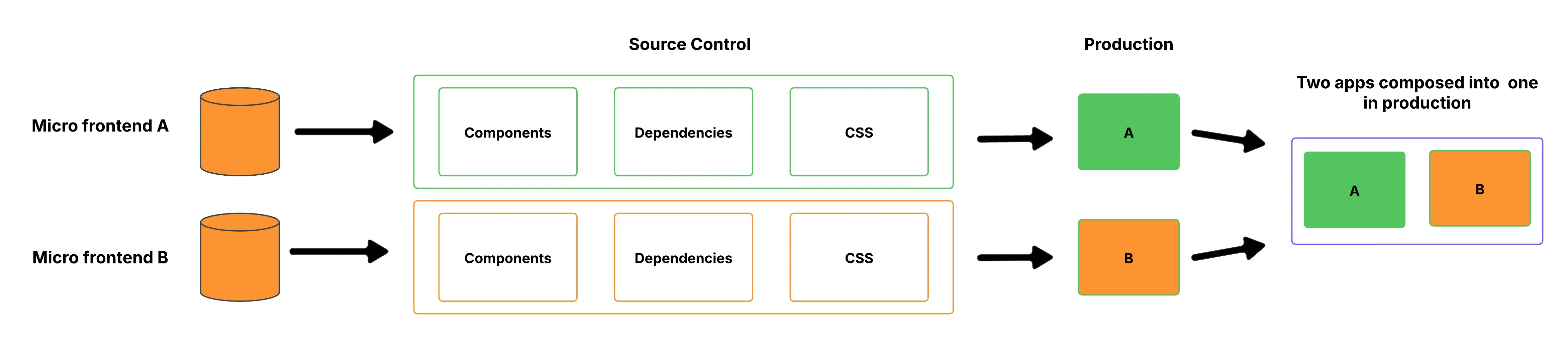

Microfrontend Overview

Why Microfrontends? A Real-World Use Case

What if you were building a massive e-commerce platform that’s constantly evolving? You have multiple teams working on different parts of the site:

Now imagine needing to update the checkout flow in a monolithic frontend architecture. One small change could affect the entire codebase, delay deployments, and cause conflicts with other teams’ work. That’s a nightmare.

This leads to problems such as:

Microfrontends address this by splitting the frontend into smaller, independent modules that individual teams can develop and release separately.

Each team develops, tests, and deploys its module separately, ensuring faster releases, minimal disruptions, and improved scalability.

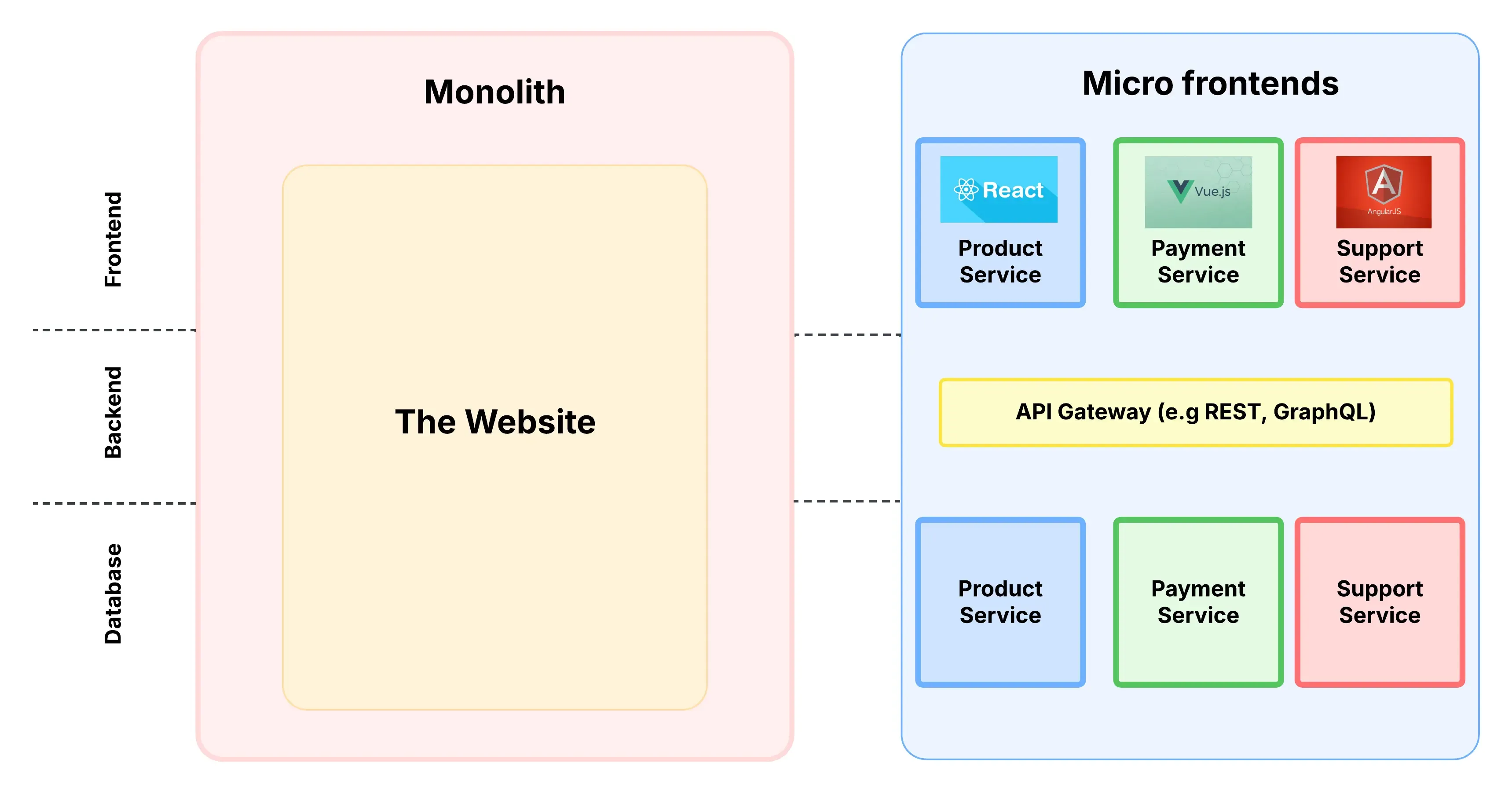

Monolith vs Microfrontend Architecture

When and Why to Use Micro-Frontends

1. Scalability and Maintainability

Managing a large, monolithic frontend can be overwhelming, especially as an application expands. Micro-frontends break the system into smaller, self-contained units, making it easier to scale individual components based on demand. This modular structure also simplifies maintenance, as updates, bug fixes, or enhancements can be applied to a specific section without impacting the entire application.

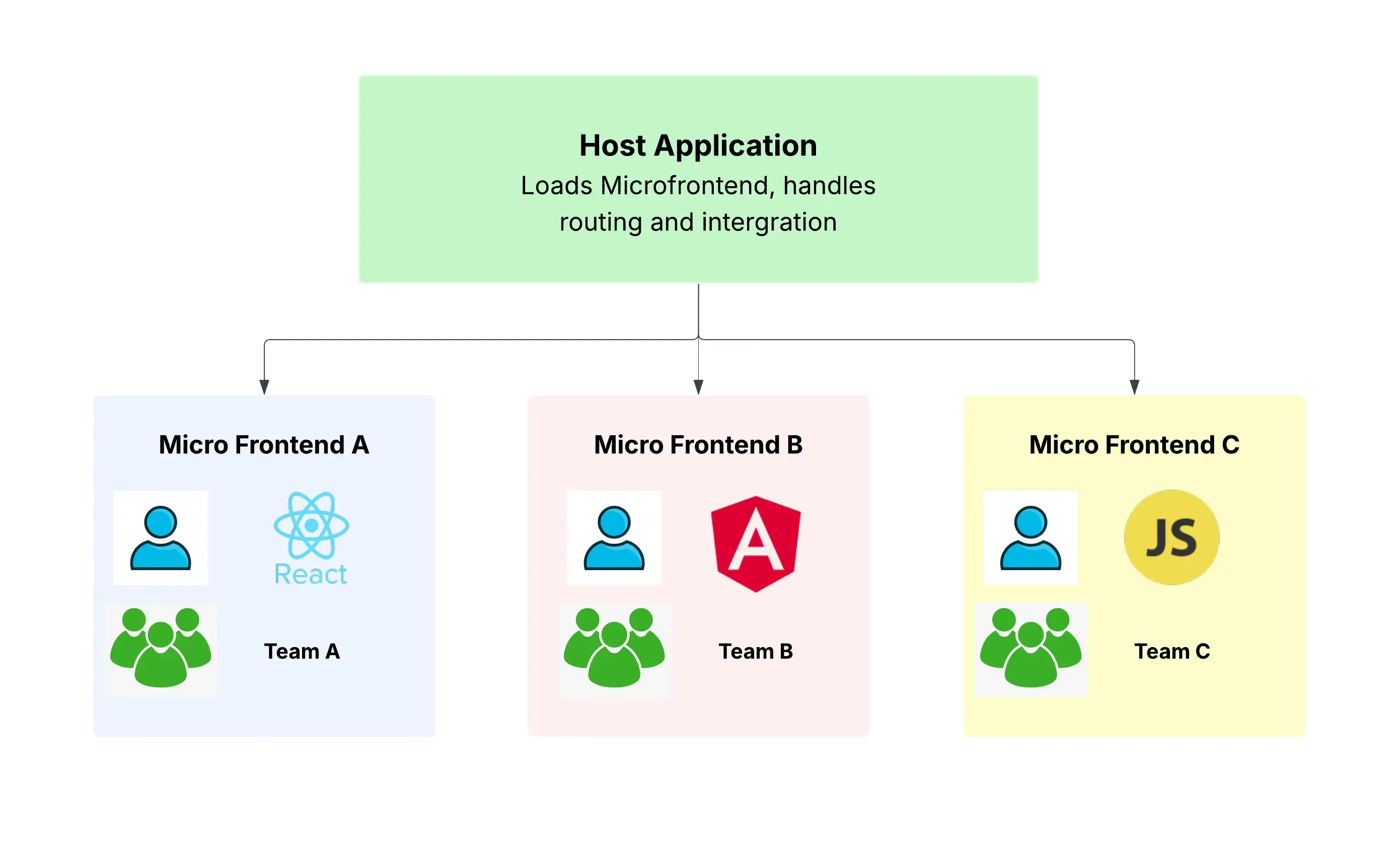

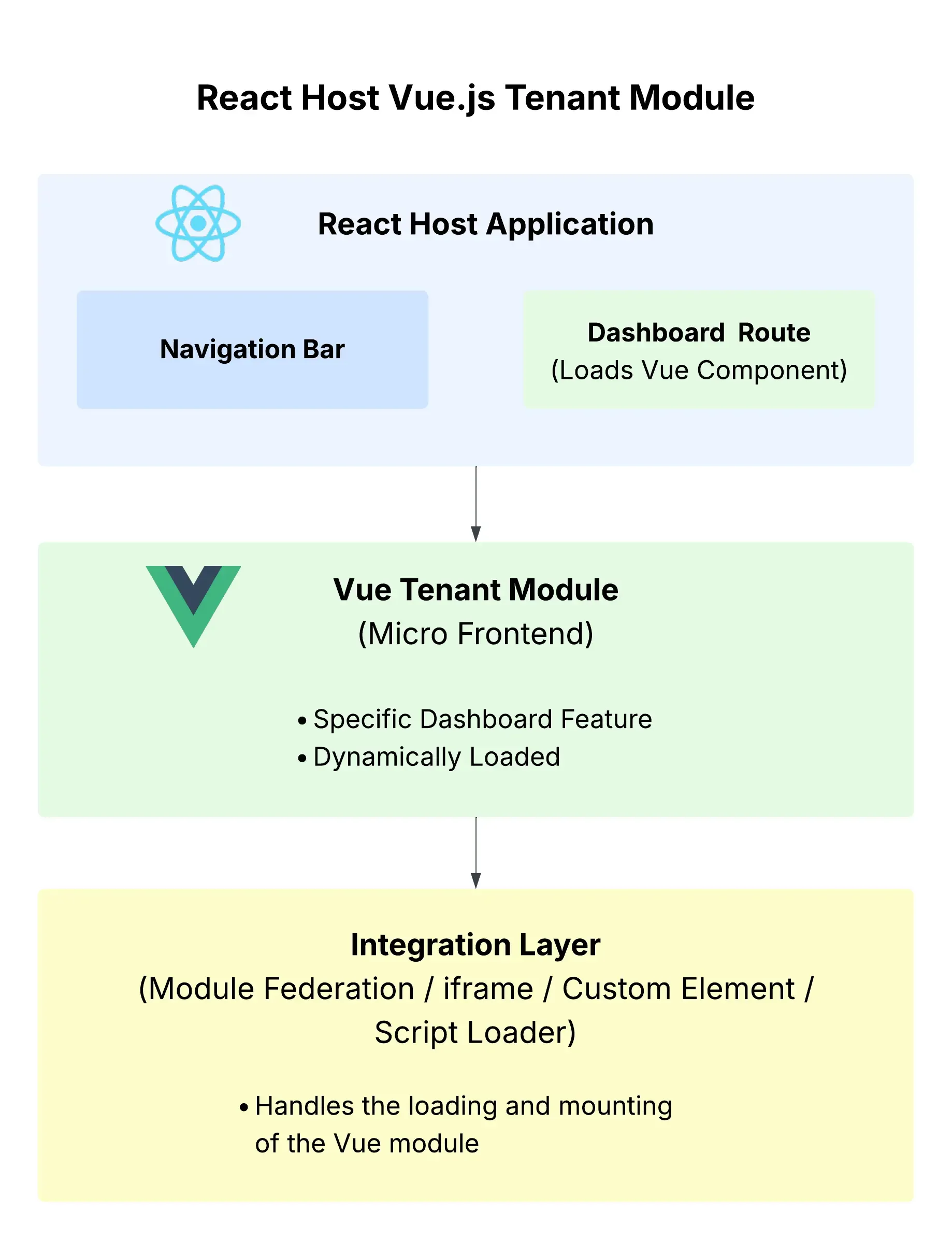

2. Framework Freedom

One significant benefit of microfrontends is that different modules can be built using diverse technologies. Each module operates independently, giving teams the freedom to select the tools and frameworks that work best for their specific requirements. This flexibility allows developers to combine different technologies without concern for compatibility problems.

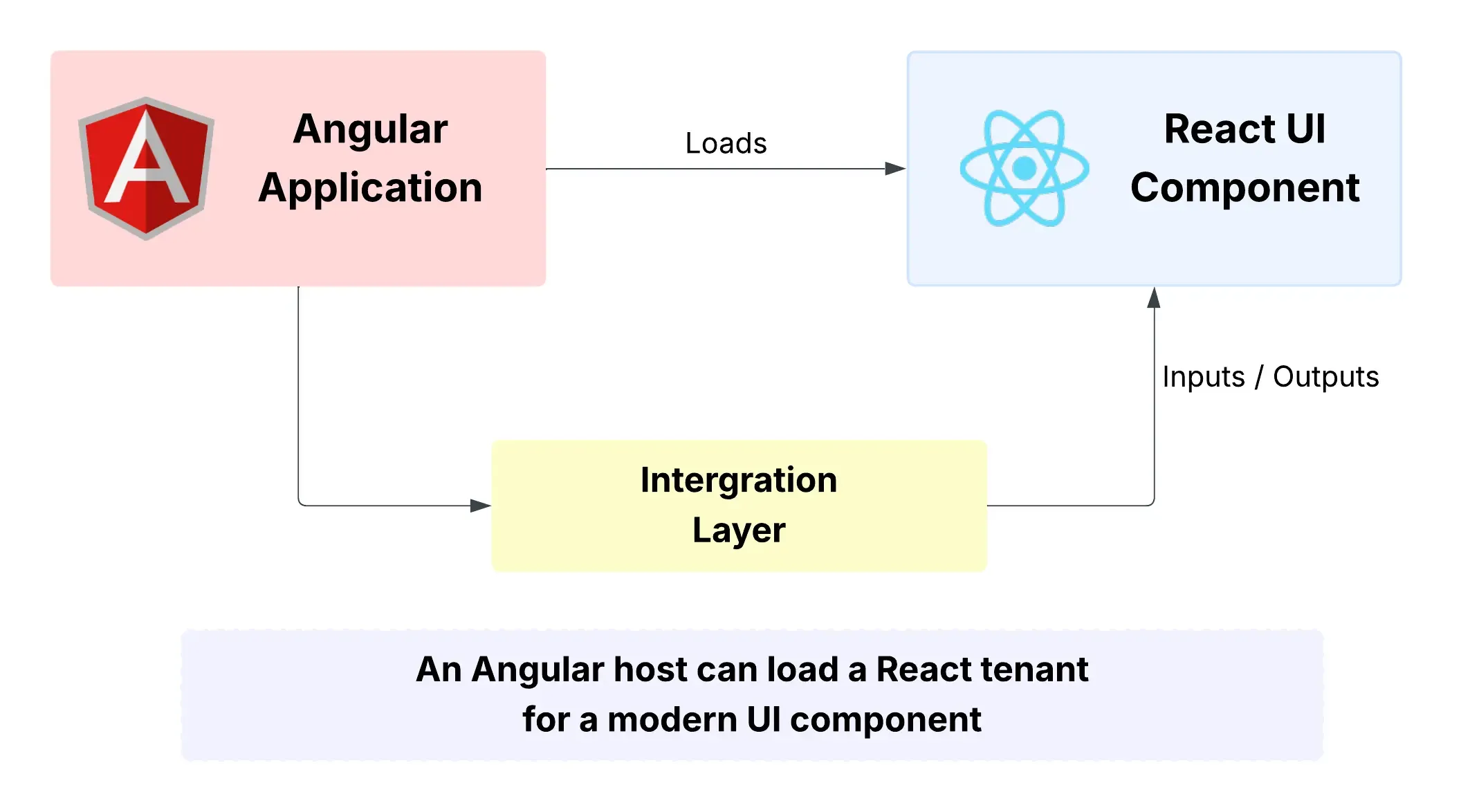

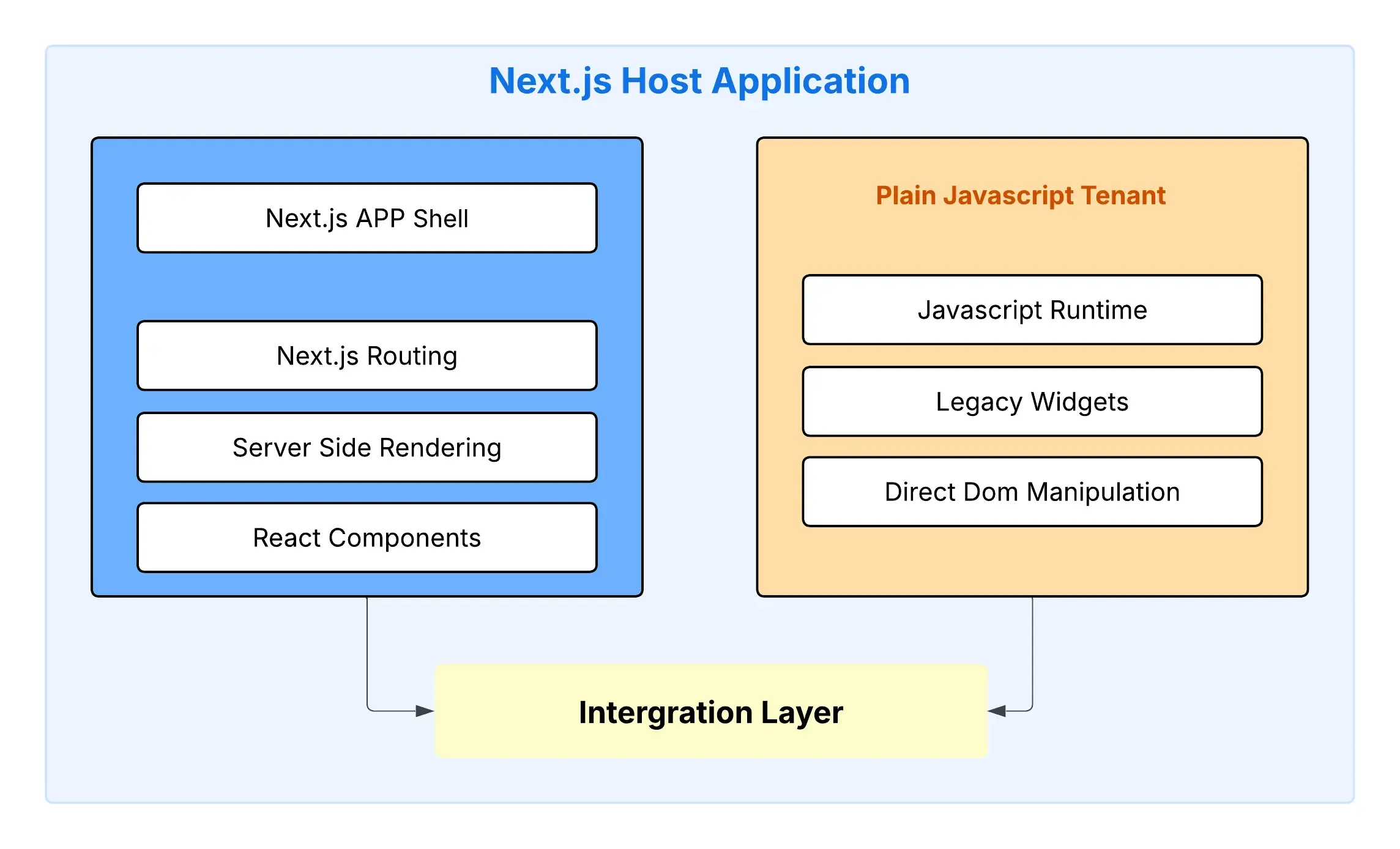

For example:

3. Faster Development and Deployment

With micro-frontends, different teams can work on various UI components simultaneously, eliminating dependencies that slow down development. Since each module operates independently, features can be rolled out faster without waiting for other sections to be completed. This speeds up the software development lifecycle and reduces downtime when deploying updates.

4. Enhanced Team Collaboration and Autonomy

For organizations with multiple development teams working on different parts of an application, micro-frontends promote autonomy. Each team can manage its own module independently, reducing bottlenecks and improving efficiency. By decentralizing ownership, teams can make decisions faster and align development with business goals more effectively.

When Should You Use Microfrontends?

Microfrontends are a powerful pattern, but they aren’t for everyone or every project.

Use microfrontends when:

Avoid microfrontends when:

Known Challenges of Microfrontends

Like any architecture, microfrontends come with trade‑offs. Some known downsides include:



In this blog, we will walk through setting up a basic micro-frontend architecture using React. Our goal is to demonstrate how multiple micro-frontend applications can be composed together dynamically, without relying on bundlers like Webpack or transpilers like Babel. This approach will give you a deeper understanding of how micro-frontends can be structured, especially when you want to keep things lightweight and simple.

Setting Up Our Micro-Frontend Architecture

In our microfrontend setup, we have a base application that acts as the host, dynamically integrating two React applications Warrior and Gladiator. Let’s break down their roles:

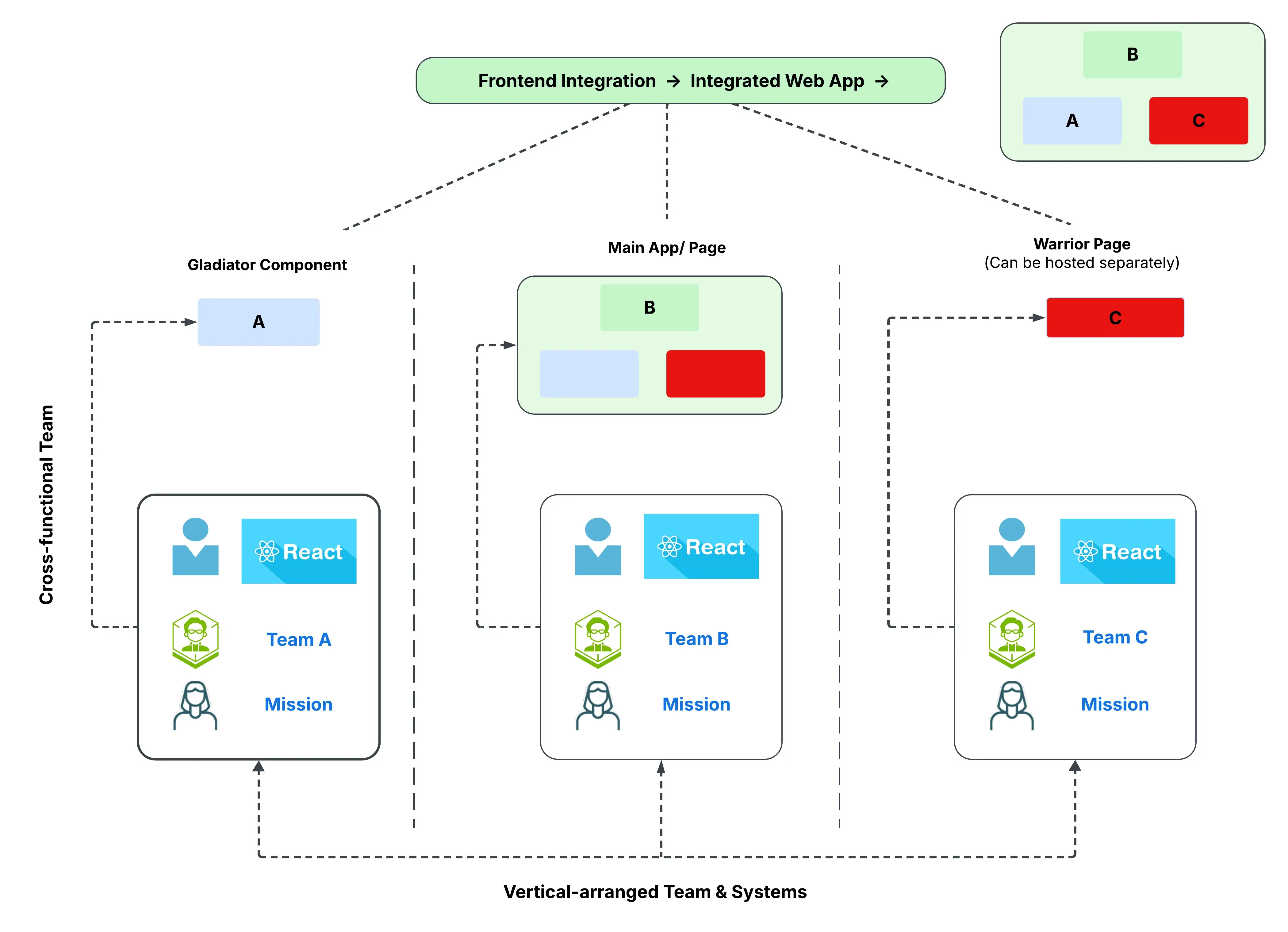

Diagram of Base Application loading Warrior and Gladiator microfrontends

Let’s break down the entire process to create this setup…

1. Project Structure

# Microfrontend Project Structure

index.html  /* Entry point for Microfrontend */
app.js
Gladiator/
  ├── Gladiator.js
Warrior/
  ├── Warrior.js
  ├── index.html  /* Entry point for Warrior application */
  ├── warrior-scripts.js

2. Creating the Base Application (index.html)

The index.html file serves as the main container for our micro frontend application. It defines the foundational structure, loads external React dependencies, and dynamically injects micro frontend modules. This setup ensures seamless integration of independently developed applications into a unified architecture.

Key Highlights:

index.html

…
 <body>
   <div id="root"></div>

   <script src="https://unpkg.com/react@18/umd/react.production.min.js"></script>
   <script src="https://unpkg.com/react-dom@18/umd/react-dom.production.min.js"></script>

   <script type="module" src="./Warrior/warrior-scripts.js"></script>
   <script type="module" src="app.js"></script>
 </body>
…

3. Base React Application (app.js)

The app.js file serves as the core of our microfrontend application. It defines the main layout, creates placeholders for each microfrontend application, and dynamically loads the microfrontend components using module imports

Key Highlights:

app.js

const createElement = React.createElement;

const Header = () =>
 createElement("div", { className: "header" },
   createElement("h1", null, "Micro-Frontend Base Application"),
   createElement("p", null, "Hosting multiple independent React components")
 );

const MicroFrontends = () =>
 createElement("div", { className: "microfrontends" },
   createElement("div", { className: "module", id: "warrior-root" }),
   createElement("div", { className: "module", id: "gladiator-root" })
 );

const App = () => createElement("div", { className: "container" }, createElement(Header), createElement(MicroFrontends));

ReactDOM.render(createElement(App), document.getElementById("root"));

// Dynamically import the micro-frontends and render them
const renderMicroFrontend = (modulePath, elementId) => {
 import(modulePath).then(module => {
   const Component = module[Object.keys(module)[0]]; // Assumes default or named export
   ReactDOM.render(createElement(Component), document.getElementById(elementId));
 });
};

renderMicroFrontend('./Warrior/Warrior.js', 'warrior-root');
renderMicroFrontend('./Gladiator/Gladiator.js', 'gladiator-root');

4. Creating the Gladiator React App

The Gladiator.js file exports a simple React component that will be loaded dynamically into our host application.

Key Highlights:

Gladiator.js

const createElement = React.createElement;
export const Gladiator = () =>
 createElement("div", null, createElement("h1", null, "React Gladiator!"));

5. Creating the Warrior React App

5.1. Warrior Index Page (index.html)

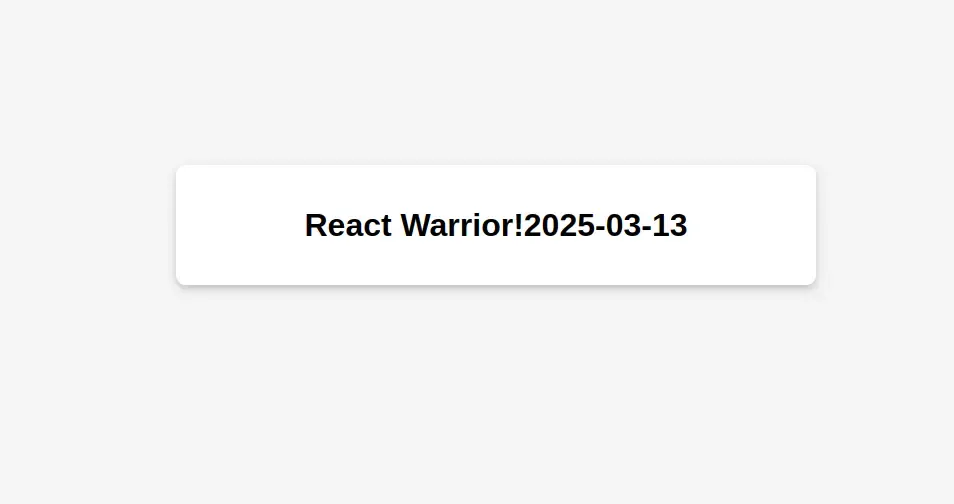

Warrior Index Page

index.html

 …
<body>
  <div id='warrior-root'></div>

  <script src="https://unpkg.com/react@18/umd/react.production.min.js"></script>
  <script src="https://unpkg.com/react-dom@18/umd/react-dom.production.min.js"></script>


  <script type="module">
    import { Warrior } from "./Warrior.js";
    const warriorScript = document.createElement('script');
    warriorScript.src = 'warrior-scripts.js';
    warriorScript.type = 'text/javascript';
    document.head.appendChild(warriorScript);
    warriorScript.onload = function() {
      // Render once dependencies are loaded
      ReactDOM.render(React.createElement(Warrior), document.getElementById('warrior-root'));
    };
  </script>
</body>
 …

5.2. Warrior Application Component (Warrior.js)

Warrior.js

export const Warrior = () => {
   return React.createElement(
       'div',
       null,
       React.createElement(
           'h1',
           null,
           'React Warrior!'
           + new moment().format("YYYY-MM-DD")
       )
   );
};

5.3. Loading External Dependencies (warrior-scripts.js)

warrior-scripts.js

// warrior specific dependencies here.
const momentScript = document.createElement('script');
momentScript.src = 'https://unpkg.com/moment@2.29.1/min/moment.min.js';
momentScript.type = 'text/javascript';
document.head.appendChild(momentScript);

6. Running Microfrontends Locally with Python’s Simple HTTP Server

Since React scripts aren’t loading directly, we need a way to serve these applications properly. A quick and easy solution is Python’s built-in HTTP server, which allows us to run multiple applications on different ports.

6.1: Start the Server for the Main Microfrontend

  1. Open a terminal and navigate to the folder containing the index.html file of the microfrontend:

    cd /path/to/microfrontend

  2. Start a simple HTTP server on port 3000:

    python3 -m http.server 3000

  3. Now, you can access the microfrontend at: http://localhost:3000

6.2: Start the Server for the Warrior Application

  1. Open a new terminal and go to the folder of the Warrior application:

    cd /path/to/microfrontend/Warrior

  2. Start another HTTP server on port 3001:

    python3 -m http.server 3001

  3. The Warrior application will be available at: http://localhost:3001

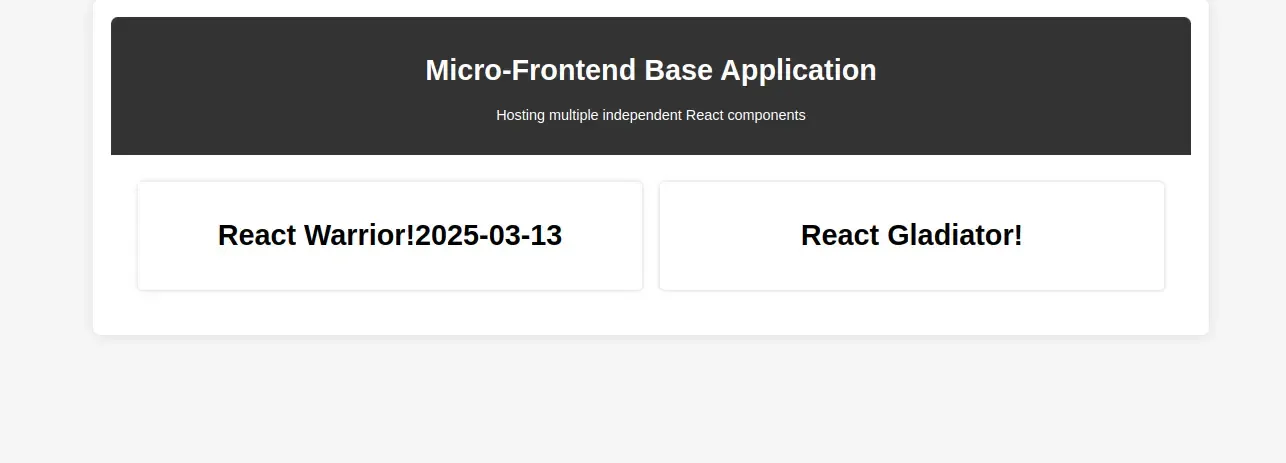

Microfrontend Main Index Page

Conclusion

There you have it! This micro-frontend architecture demonstrates how we can structure and load independent micro-frontends without using Webpack, or Babel. We dynamically import modules, load dependencies separately, and mount them into the base application.

In the next blog, we will explore how to implement micro-frontends using React with Webpack and Babel to optimize performance and improve developer experience.

Stay tuned!

GitHub Repository: microfrontend-basic-setup 🔗
